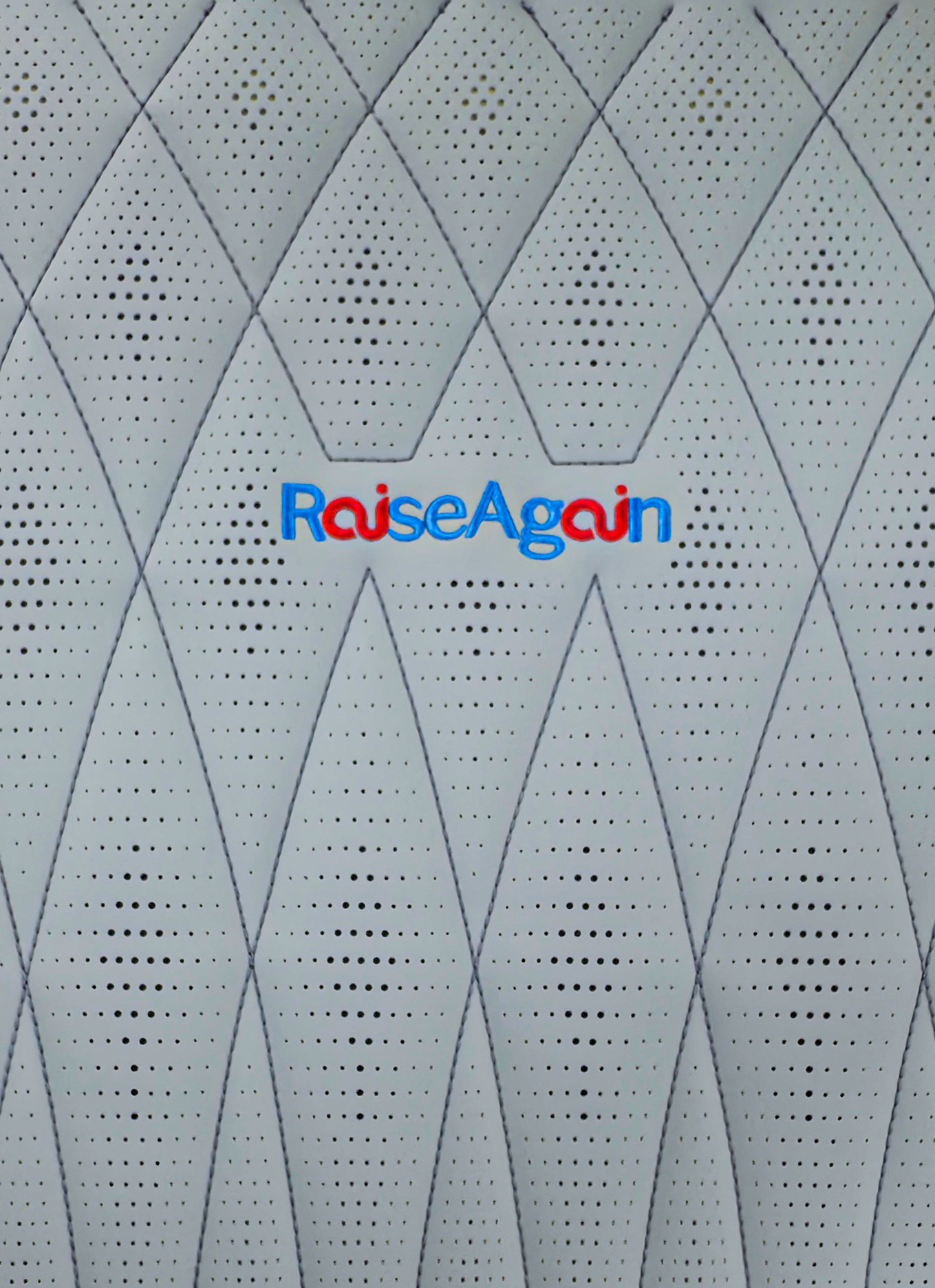

Fully Automatic Round Perforation + 9-Color Embroidery + Fixed Head Sewing Machine (SewPerEmb)

Suitable for punching + embroidering + sewing processes of various types and different thicknesses of genuine leather and microfiber leather used in automotive seats, car interiors, aviation seats, luggage and furniture, etc.

Video Download

Online Service

Please wait a moment. The video is loading...

Equipment Advantages

Integrates punching, embroidery, and sewing into one machine, allowing for arbitrary pattern design and seamless combinations of punching, embroidery, and sewing for complex processes.
Equipped with a 15-inch touchscreen central control panel with a user-friendly interface for easy operation.
Specifically developed punching machine head for leather materials, the punching tools are available in 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, and 2.5mm sizes.
Advanced 9-Color Embroidery Thread Clamping Mechanism, it reduces thread breakage and dropout, meeting embroidery requirements across various industries.
Specialized Sewing Head for Leather, it delivers beautiful stitching, with motor-controlled presser foot height adjustment, offering a wide adjustment range.
Standard Upper Thread Clamp on Sewing Head, effectively prevents thread nesting, ensuring cleaner and more attractive stitching.
Sewing Head with 50mm Lifting Height, makes material loading space enough and easy operation.
Includes Upper Thread Breakage Detection, Bobbin Thread Counting, and Piece Counting.
Needle bar and related parts are treated with DLC coating, offering wear resistance and extending service life.
The machine frame is specifically designed for punching, embroidery, and sewing processes, ensuring structural stability and maintaining high precision.
Custom-Designed Fixtures, easy to mount and unmount, facilitating quick material changes.
Optional: Professional pattern-making software, the GetonAgain Intelligent Punching + Embroidery + Sewing CAD System.
Optional: Can be equipped with an intelligent IoT system, supporting remote real-time monitoring and cloud-based data management, enabling visualization of equipment status and production parameters. Automatically records and analyzes production data, helping enterprises optimize production efficiency and build a digital production control system.

Model	Machine Installation Size (L×W×H)
GOACE	5420mm×3160mm×1765mm
GOACE	4650mm×2120mm×1765mm
