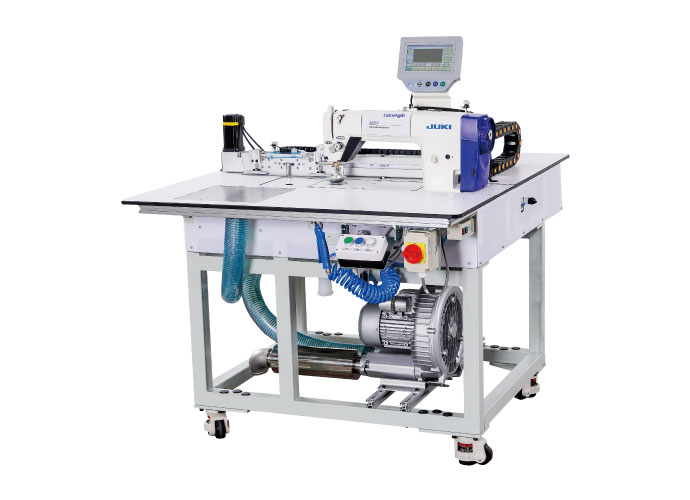

Automatic Template Sewing Machine-2850
Used for template sewing process requirements such as patch bags, turtle backs pattern, and labels.
.png)
Please wait a moment. The video is loading...
Equipment Advantages
- Using the JUKI 8000A micro oil original machine head, it only supplies oil to the rotary shuttle, especially suitable for fabrics such as down jackets that are prone to oil stains spreading.
- Equipped with a thread grabbing device and a cross tangent line below the needle position after sewing, with a thread length of less than 3.5mm.
- Optional suction device.
- Scissor method: Electromagnet.
- Sewing Area: 280mm×500mm.
- Supports single needle lock stitch, stitch length 0.5-12.7mm.
| Model | Working Area (mm) | Net Weight (kg) | Power (kw) | Machine Installation Size (L×W×H) |
|---|---|---|---|---|
| GOA-2850-D | 280mm×500mm | 190kg | 350W | 1100mm×1326mm×1500mm |
| GOA-2850-D/XF | 280mm×500mm190/267kg | 220kg | 990W | 1100mm×1326mm×1500mm |
