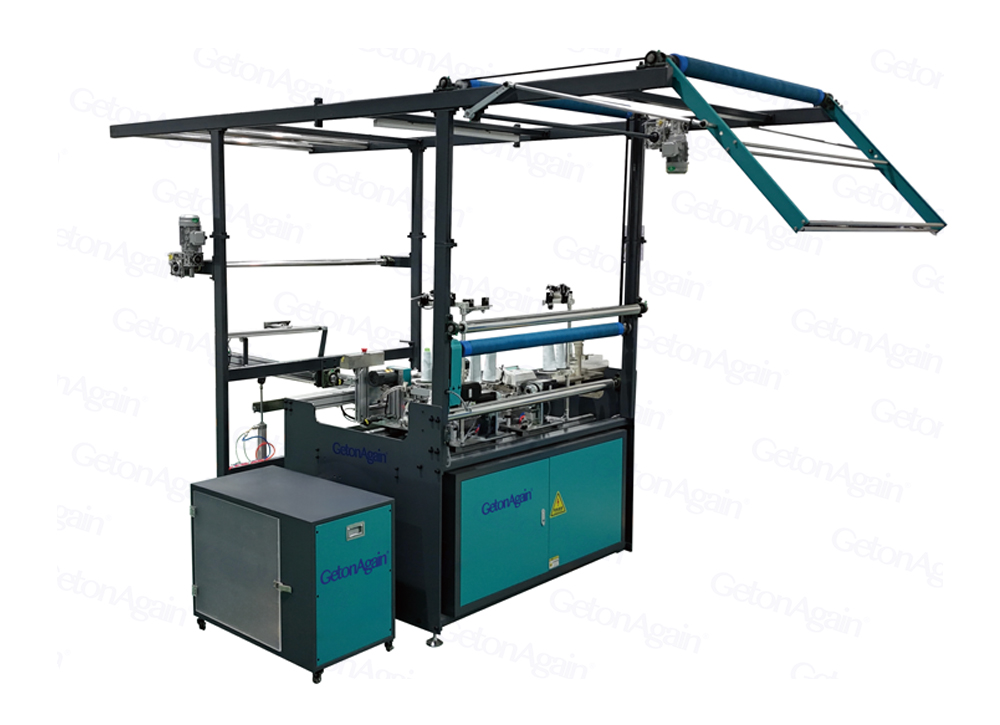

Automatic Towel Sewing Machine (Towel & Bath Towel Longitudinal Seaming)

Suitable for raw fabric and non-elastic towel edge hemming and seaming.

Brochure Download

Video Download

Please wait a moment. The video is loading...

Equipment Advantages

Smart Control: One-touch startup, one operator can manage multiple units, reducing labor;
Feed Correction: Automatic fabric straightening to correct fabric weft skew;
Edge Hemming: Double-side hemming of the towel;
Sewing Head: Reversible sewing head, lock/cover stitch (selectable), consistent seam quality;
Detection: Fiber optic edge detection with auto-tracking of towel edge for sewing;
Fabric Guide: Adjustable width & speed for feeding;
Auto-stop: Stops automatically with thread break or fabric misalignment alarms.

Model	Working Area (mm)	Net Weight (kg)	Power (kw)	Machine Installation Size (L×W×H)
GOA-AS,O-ES-2-230×900-CS1/2-AF-1P220	230-900mm	600kg	3kW	4700×2800×2800mm
GOA-AS,O-ES-2-230×900-CS1-AF-1P220	230-900mm	600kg	3kW	4700×2800×2800mm
GOA-AS,O-ES-2-230×1250-CS1/2-AF-1P220	230-1250mm	700kg	3kW	4200×3000×2800mm
GOA-AS,O-ES-2-230×1250-CS1-AF-1P220	230-1250mm	700kg	3kW	4200×3000×2800mm

←
