Garment CAD Free Version

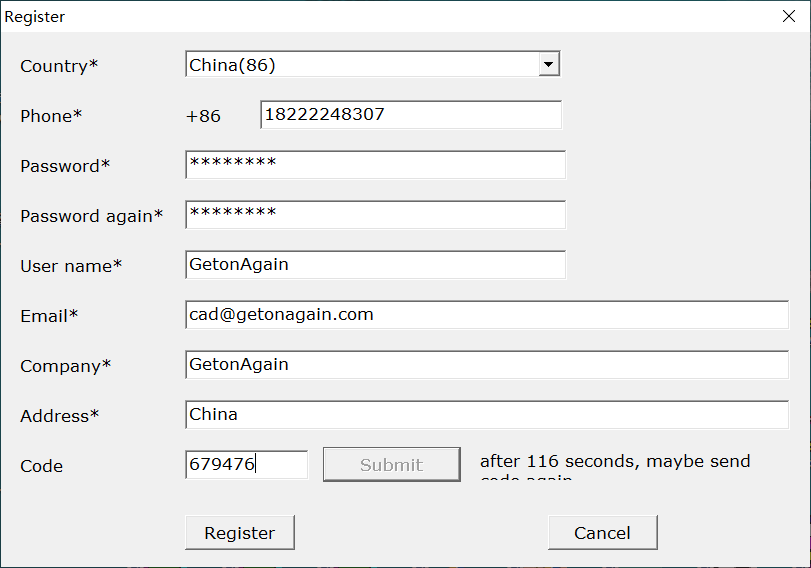

1 Register an account with the phone number

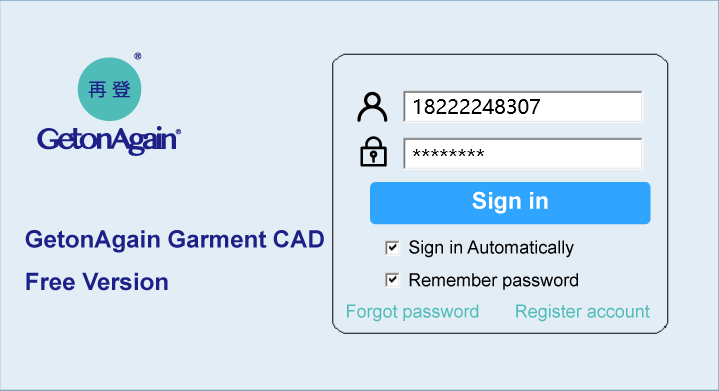

2 Log in to the software with your mobile number (no country code)

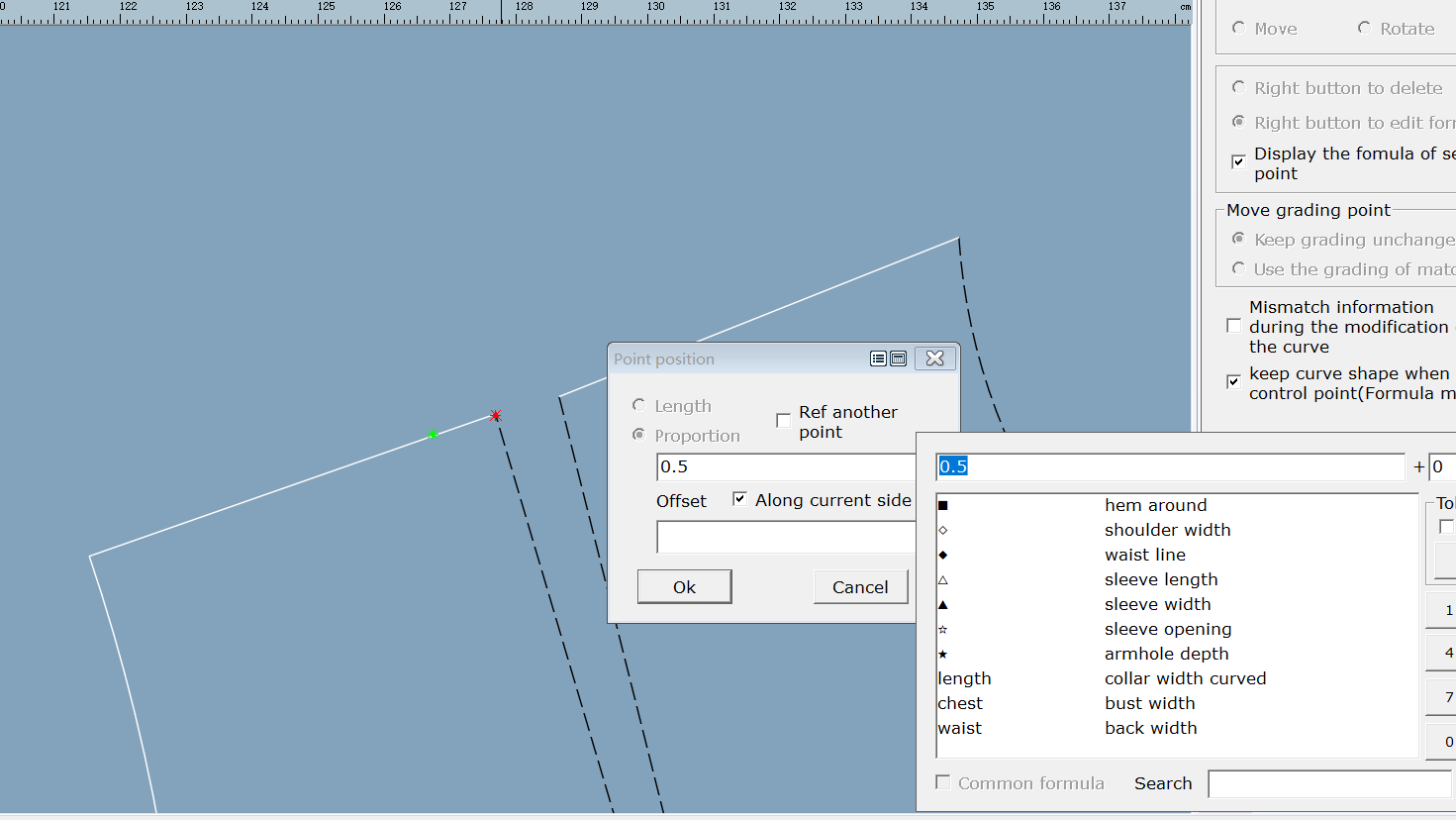

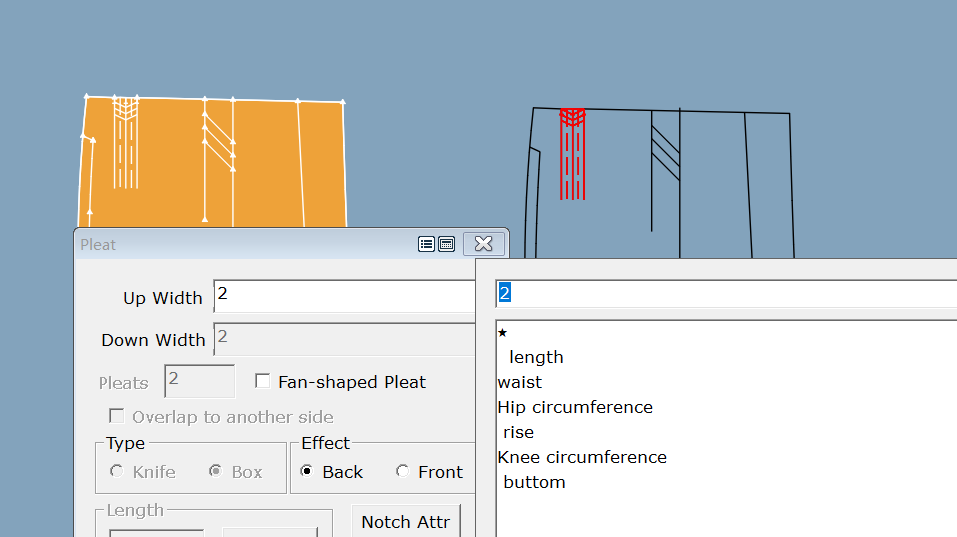

3 The system pattern making and grading adopts a new design idea, which integrates the formula method and the free method. One part, other related parts are modified together, and elements such as notches, buttonholes, drilling, darts, and pleats can also be linked.

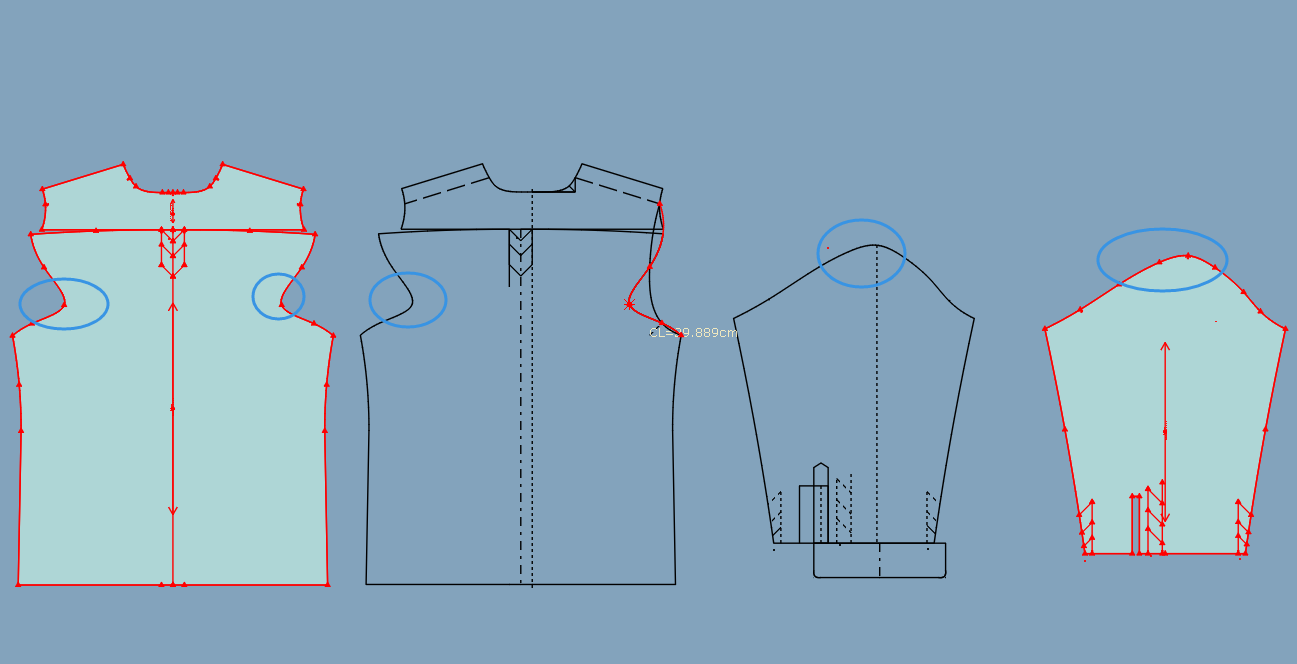

4 Design line linkage, the design line is linked with the pattern - the triangle point represents the linkage point.

5 The plate-making and grading part retains the original garment CAD functions, which can be added, converted, pleated, etc., provide a wealth of seam allowance types, process identification, can customize various line types, and allow users to build parts libraries, such as The collar, cuffs and other parts are directly loaded when using.

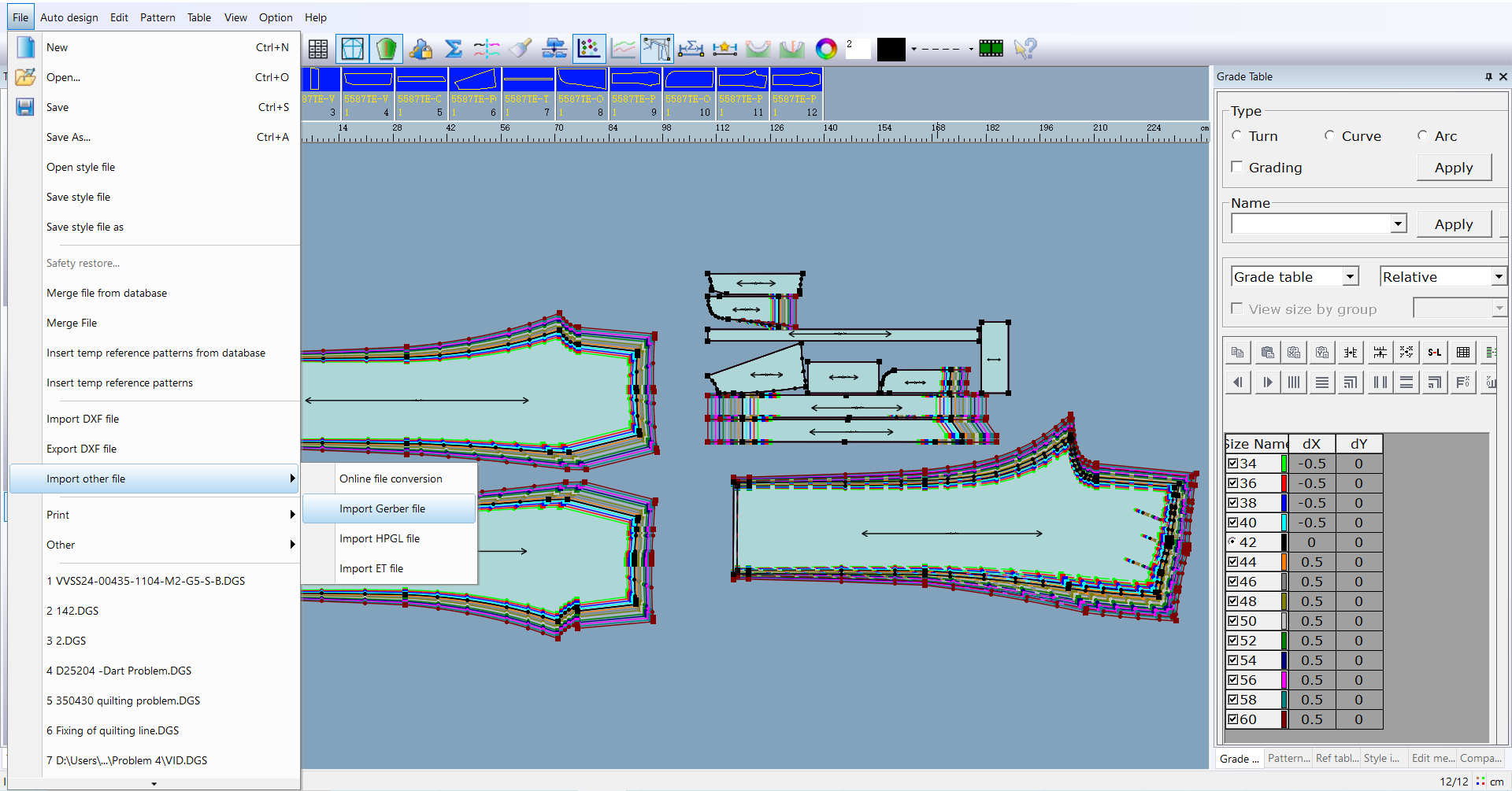

6 Import files in various other formats, such as DXF(AAMA/ASTM/AUTOCAD)\PLT\ZIP\MODEL.

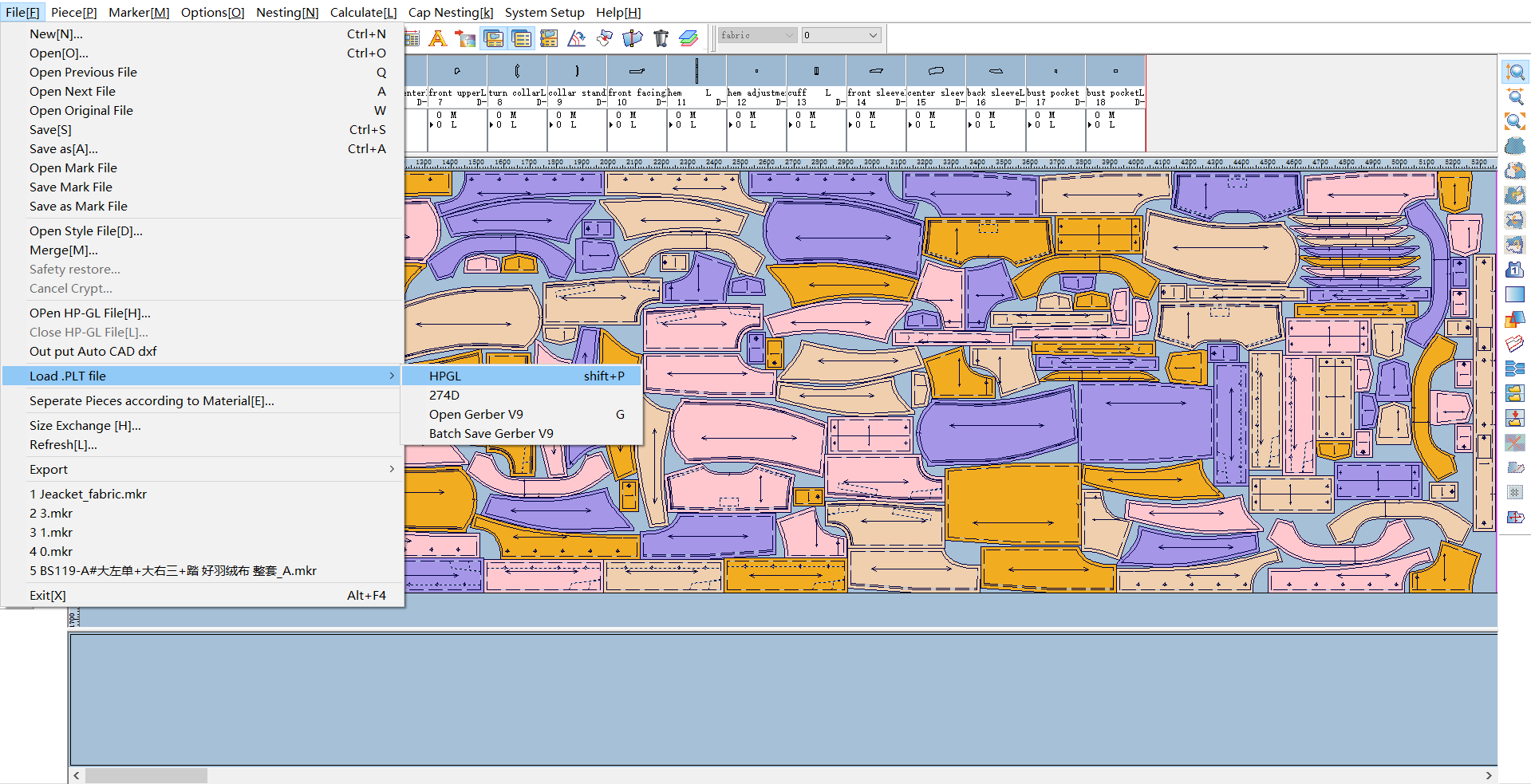

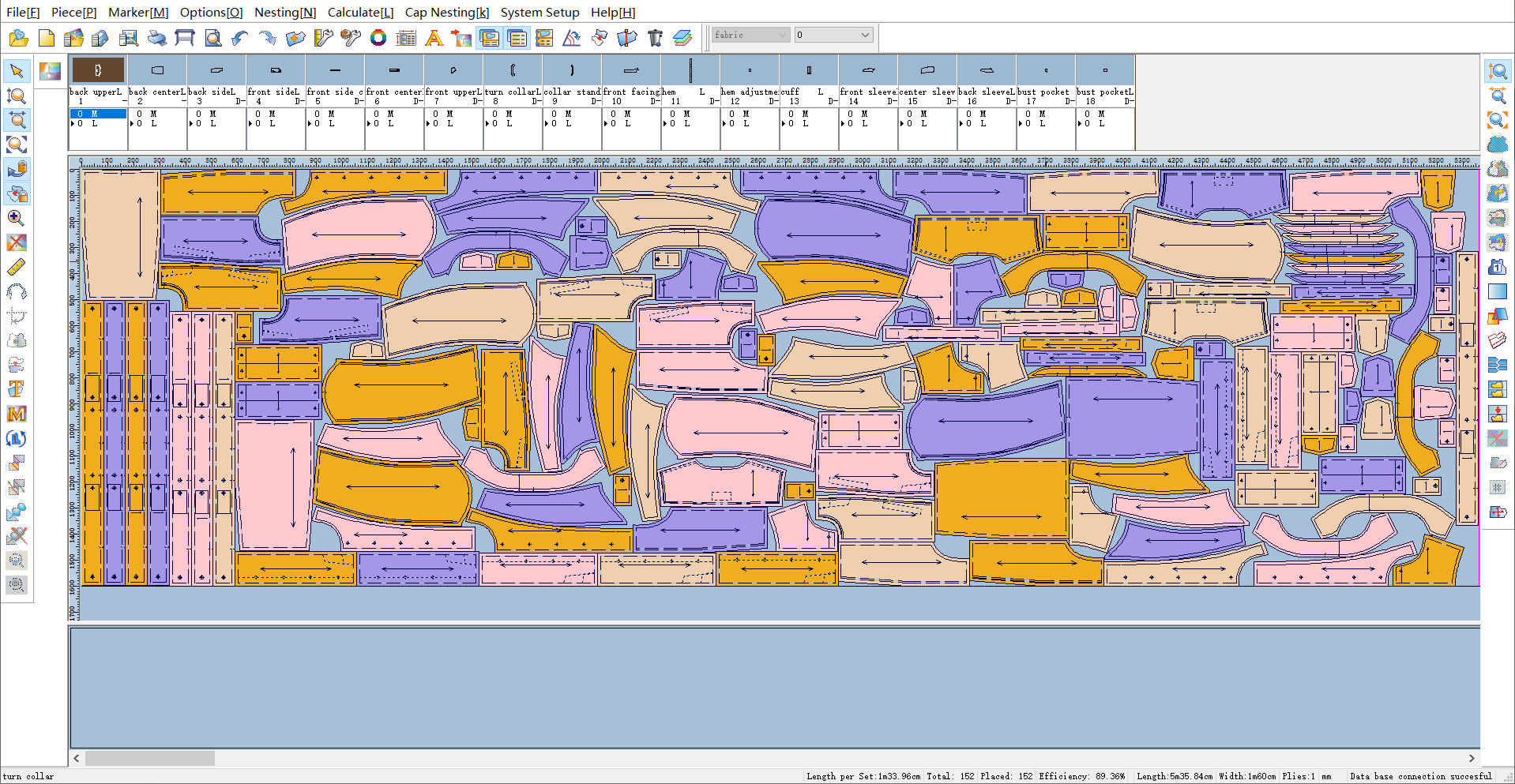

7 GMS tailor-made cap function is used to toys, gloves, underwear, etc. Copy, inverted truss function to achieve a high utilization of the fabric.　　 GMS can read various HPGL files successfully, import theHPGL\PLT\CUT\Gerner files and re-nesting.
