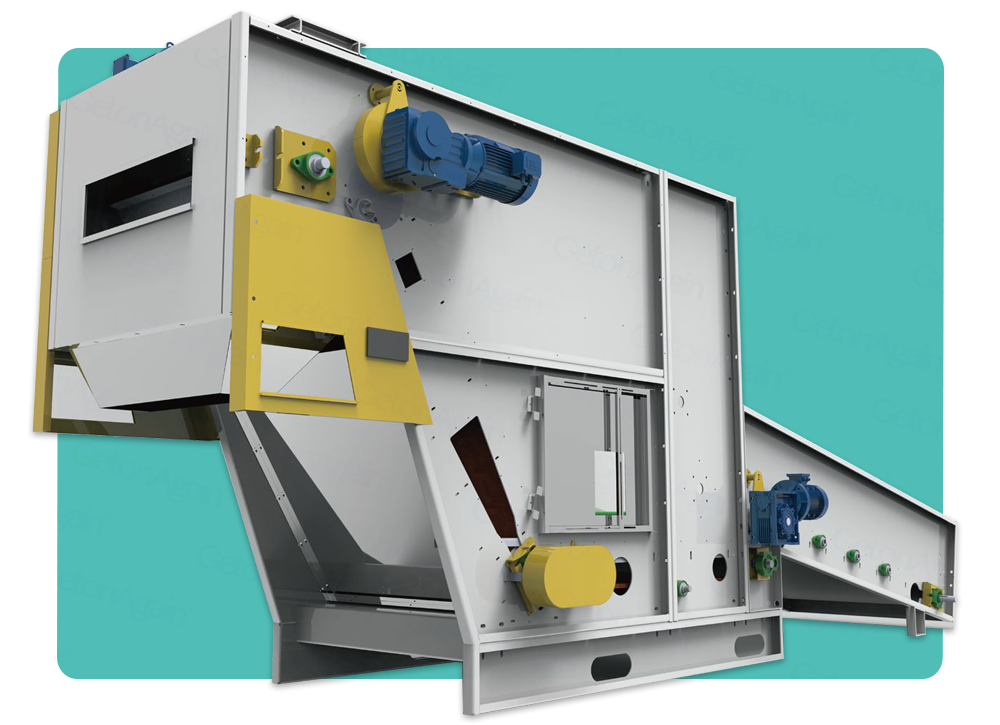

Bale Opener With Weighing Function
▲
Bale Opener With Weighing Function
▼

Bale Opener With Weighing Function

Suitable for pillows, cushions, bedding, and other products, it feeds the cotton curtain to the feeding curtain of the preceding machine.

Brochure Download
Online Service
Please wait a moment. The video is loading...

Equipment Advantages

  1. Functionality

    Transfers various types of bundled fibers to the feeding lattice at a set speed and proportion; supports multi-unit operation.

    Photoelectric automatic control for fiber feeding, variable-frequency speed adjustment for the spiked lattice to ensure precise fiber supply.

    Aluminum alloy extra-large weighing hopper, with a max capacity of 3kg per hopper. Pneumatic control allows up to 3 openings per minute, ensuring accurate electronic weighing.

  2. Structural Design

    Machine frame made from Q235-A steel, featuring CNC laser cutting, CNC bending, and modular assembly.

    Spiked lattice uses high-quality wooden spikes, reinforced with thick canvas and wooden support strips.

    Feeding conveyor consists of two segmented open leather belts, arranged in an interlocking high-low pattern.

  3. Materials & Technology

    Durable aluminum alloy weighing hopper.

    High-precision electronic weighing system.
