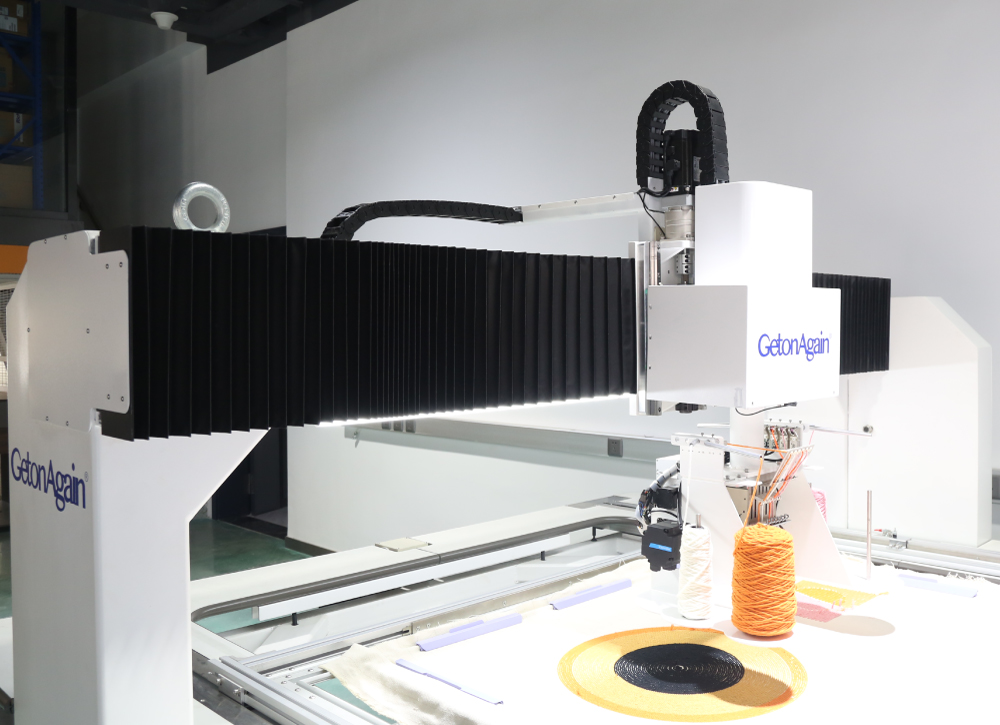

Computerized Tufting Machine

Suitable for a variety of rugs, tapestries, foot mats and other home furnishing items that require tufting craftwork.

Brochure Download

Video Download

Please wait a moment. The video is loading...

Equipment Advantages

Self-Developed Tufting Control System: User-friendly interface, flexible touch control, large storage capacity, ensures high-precision operation of the machine.
15.6-inch HD Touch Screen Integrated Machine: Simple to operate.
Rotary Tufting Head: Can rotate freely and tuft in any direction, making patterns more vivid.
Pneumatic Lifted Tufting Head: Lift stroke of 100mm, convenient for frame changing and beneficial for pattern spanning tufting.
Automatic Oil Supply System: Reduces machine noise and extends service life.
X-Movement with Lead Screw + Guide Rail: Ensures high precision, stability, and reliability.
Full Servo Motor Control: High stability ensures high-quality tufting results.
Professional Pile Cutting Structure: Stable and fast operation.
GetonAgain Intelligent Tufting CAD Software: Easy-to-learn pattern design.
Optional Custom Tufting Frames.

Model	Working Area (mm)	Net Weight (kg)	Machine Installation Size (L×W×H)
GOA-TUFT-601(1200×900)-RHA	1200mm×900mm	2170Kg	2560mm×2624mm×2200mm
