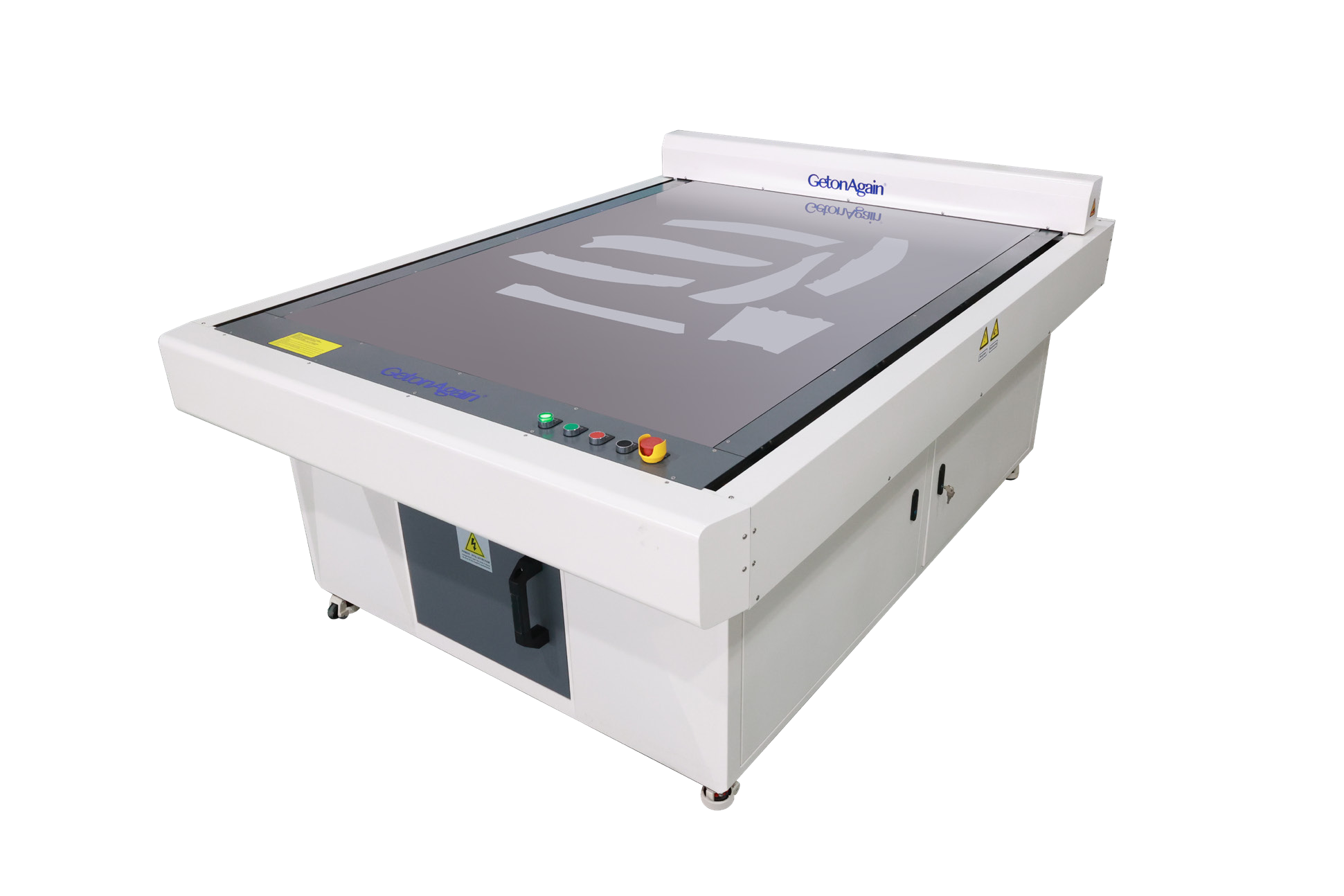

Flatbed Scanning Digitizer
Convert paper patterns and physical cut pieces into digital files with one-touch scanning, improving the efficiency of the pattern room and laying a solid foundation for enterprise digital upgrading.
.png)
Please wait a moment. The video is loading...
Equipment Advantages
- Replaces traditional manual scanning. After placing the pieces, one-touch scanning greatly improves the efficiency of the pattern room.
- Automatically identifies pattern contours, notches, apertures and other details.
- Equipped with two background options (dark/light) that can be switched freely, suitable for scanning cut pieces of different colors.
- Cut pieces are fixed and flattened by PVC sheet pressing plus vacuum adsorption, ensuring high scanning accuracy.
- Adopts an aviation-grade aluminum profile platform with high flatness to guarantee scanning precision.
- High-definition scanning module, unaffected by ambient light with no need for supplementary lighting.
- High-precision modules equipped with servo motors ensure stable operation and high accuracy of the machine.
- Open IoT data collection ports to support enterprise digital transformation.
- Comes with contour extraction software, exporting universal DXF format files.
| Model | Working Area (mm) | Net Weight (kg) | Power (kw) | Machine Installation Size (L×W×H) |
|---|---|---|---|---|
| GOA-FP-1-2 | 1000×1200 | 400kg | 2kW | 1700mm×1600mm×1010mm |
| GOA-FP-1-2 | 1500×1200 | 480kg | 2kW | 2300mm×1600mm×1010mm |
| GOA-FP-1-2 | 2000×1200 | 560kg | 2kW | 2800mm×1600mm×1010mm |
