Stripe and Plaid Matching Cutting Machine

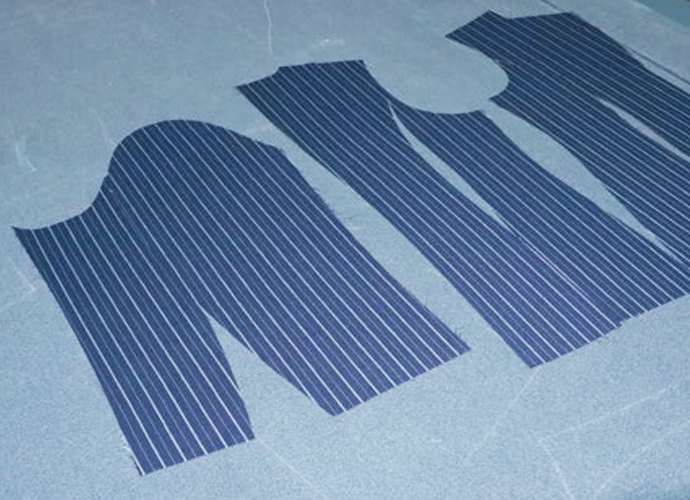

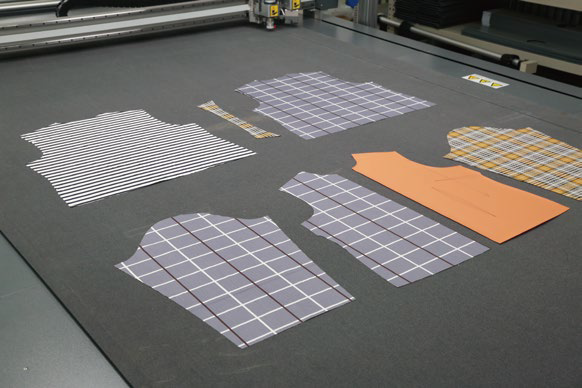

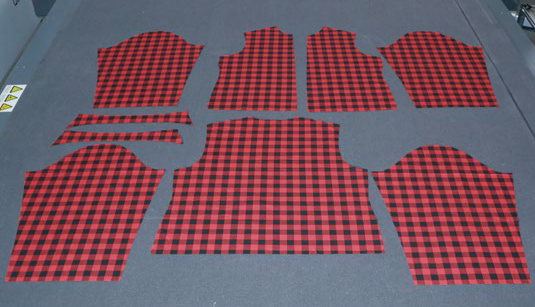

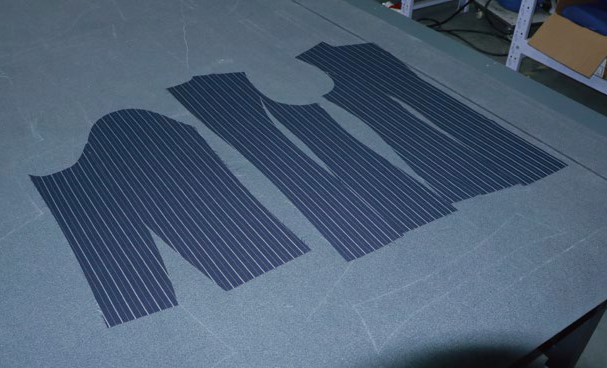

High-end clothing customization, the effect of the "alignment matched stripe and plaid" process has become the important measurement on the quality of this type of clothing. Stripe and plaid auto cutter is the equipment specially developed for this process to meet "matching stripe and plaid" clothing. Suitable for single ply cutting process of striped & plaided fabrics.
.png)
Please wait a moment. The video is loading...
Equipment Advantages

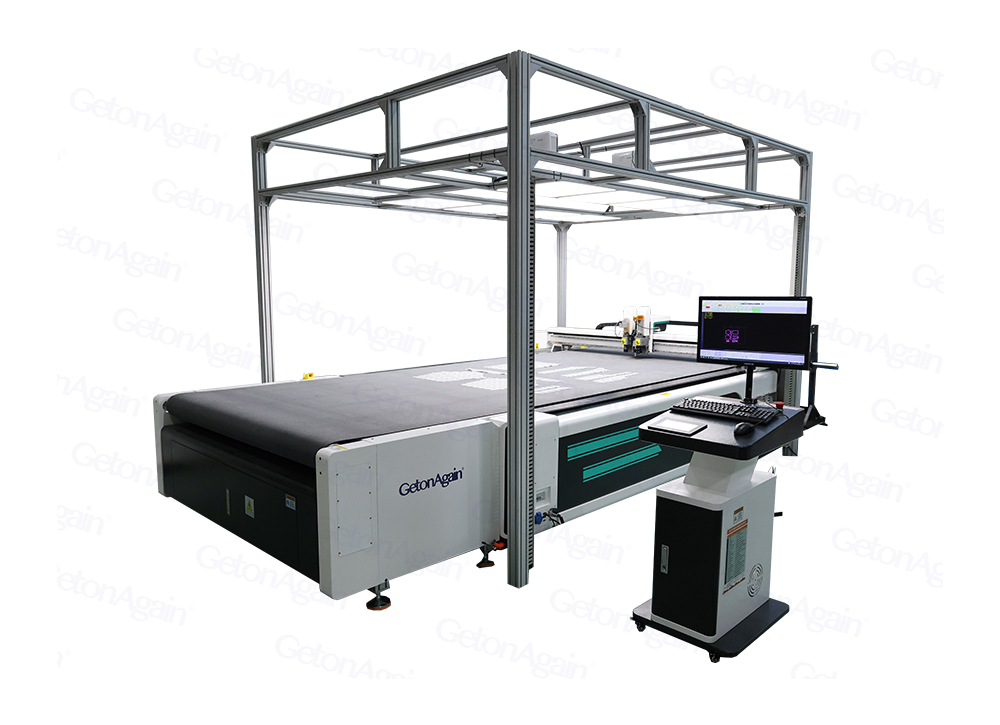

- Stripe and Plaid Matching Auto Cutter, equipped with Double Knives + Pen Draw (Punching) working mode, special for various stripes and plaids fabric cutting in single ply.
- Equipped with a few HD industrial cameras, according to the capture size to perform intelligent combination, ensure the high accuracy fabric images capturing.
- Import HD images to stripe & plaid matching software CAD, intelligent adjust cutting pieces positioning, high accuracy alignment, easy and convenient.

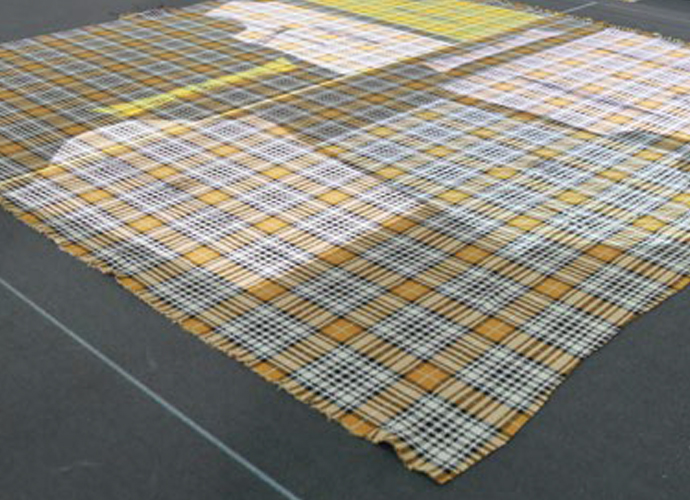

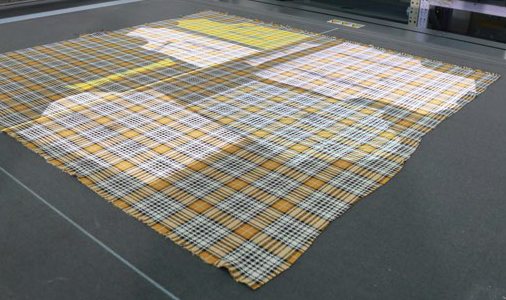

- High-definition projection dynamically displays the real-time nesting status, significantly improving the accuracy of the marker result.
- Standard configuration with high-performance computer, 15 inches industrial monitor, high speed computation processor, improve production efficiency.
- After nesting, then auto execute cutting. Double knives mode can meet the cutting process of knitted, woven and leather with alignment matched on stripe & plaid, and graphics pattern.
- Optional with constant tension automatic feeding rack, to reduce knit fabric tension, effectively lower shrinkage rate of cutting pieces.
- Optional receiving table, cutting and collecting finished cut pieces at the same time, further improve production efficiency.
| Model | Working Area (mm) | Power (kw) | Machine Installation Size (L×W×H) |
|---|---|---|---|
| GOA-FP,NM-PD+DKC-1-1200×1600-SGSF-P+CK-PP+AF-3P380 | 1200mm×1600mm | 9kW | 2500mm×3000mm×2800mm |
| GOA-FP,NM-PD+DKC-1-1200×1600-SGSF-P+CK-PP+AF+AR-3P380(with Receiving Table) | 1200mm×1600mm | 9kW | 3800mm×3000mm×2800mm |
| GOA-FP,NM-PD+DKC-1-2500×1600-SGSF-P+CK-PP+AF-3P380 | 2500mm×1600mm | 9kW | 4000mm×3000mm×2800mm |
| GOA-FP,NM-PD+DKC-1-2500×1600-SGSF-P+CK-PP+AF+AR-3P380(with Receiving Table) | 2500mm×1600mm | 9kW | 6600mm×3000mm×2800mm |
| GOA-FP,NM-PD+DKC-1-3500×1600-SGSF-P+CK-PP+AF-3P380 | 3500mm×1600mm | 9kW | 5000mm×3000mm×2800mm |
| GOA-FP,NM-PD+DKC-1-3500×1600-SGSF-P+CK-PP+AF+AR-3P380(with Receiving Table) | 3500mm×1600mm | 9kW | 8600mm×3000mm×2800mm |
| GOA-FP,NM-PD+DKC-1-1200×1800-SGSF-P+CK-PP+AF-3P380 | 1200mm×1800mm | 9kW | 2500mm×3200mm×2800mm |
| GOA-FP,NM-PD+DKC-1-1200×1800-SGSF-P+CK-PP+AF+AR-3P380(with Receiving Table) | 1200mm×1800mm | 9kW | 3800mm×3200mm×2800mm |
| GOA-FP,NM-PD+DKC-1-2500×1800-SGSF-P+CK-PP+AF-3P380 | 2500mm×1800mm | 9kW | 4000mm×3200mm×2800mm |
| GOA-FP,NM-PD+DKC-1-2500×1800-SGSF-P+CK-PP+AF+AR-3P380(with Receiving Table) | 2500mm×1800mm | 9kW | 6600mm×3200mm×2800mm |
| GOA-FP,NM-PD+DKC-1-3500×1800-SGSF-P+CK-PP+AF-3P380 | 3500mm×1800mm | 9kW | 5000mm×3200mm×2800mm |
| GOA-FP,NM-PD+DKC-1-3500×1800-SGSF-P+CK-PP+AF+AR-3P380(with Receiving Table) | 3500mm×1800mm | 9kW | 8600mm×3200mm×2800mm |
